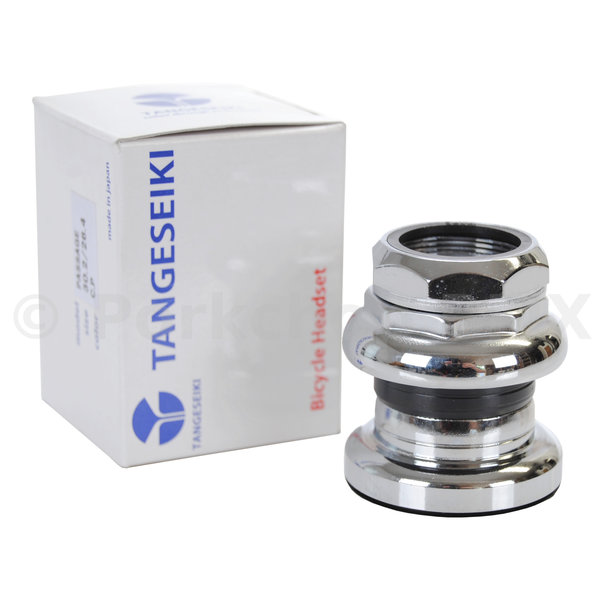

Tange Passage JIS ROAD BIKE bicycle headset - 1" threaded, 30.0mm cup, 27.0mm crown race - CHROME

•         Material: Steel
•         Finish: CHROME
•         Size: For 1" threaded forks (BC1)
•         Diameter: 30.0mm bearing cups/27.0mm crown race, This is known as a "JIS" headset (as opposed to an ISO headset).
•         Stack Height: 21.2mm + 10.8mm = 32mm
•         Triple sealed mechanism (this means there are 3 different plastic gaskets to keep out dirt/water - at the crown race, at the top bearing, and where the stem quill enters)
•         Bearing: Caged: 5/32" X 20
•         Weight: 116 g
•         MADE IN JAPAN

VERY IMPORTANT: THIS WILL NOT FIT A REGULAR BMX FRAME - a standard 1" threaded fork BMX frame takes 32.5mm bearing cups - this headset has 30.0mm cups and is designed for Japanese (and other Asian manufacturers) road bikes - but it may fit old school MINI BMX frames (these are for smaller riders and used wheels with 451mm bead diameter). As always MEASURE THE INNER DIAMETER OF YOUR HEADTUBE and CROWN RACE before ordering.
